istio安装

istio官网安装提供了多种方法，因为集群中包含helm，所以选择用helm安装istio

  • 下载istio release(目前版本为0.8.0)
  • 命令行执行helm install install/kubernetes/helm/istio --name istio --namespace istio-system(此命令采取自动注入sideCar)

istio的helm的value.yaml文件如下:

# Use --set or additional values.yaml file to configure settings.
# This file no longer uses sed, updateVersions.sh or istio.VERSIONS
# TODO: evaluate if we need individual overrides for each component version, istio
# is not typically tested with a mix of versions. Only supported case is version upgrade.

# Common settings.
global:
  # Default repository for Istio images.
  # Releases are published to docker hub under 'istio' project.
  # Daily builds from prow are on gcr.io, and nightly builds from circle on
  # docker.io/istionightly
  hub: 192.168.30.100:8889/istio

  # Default tag for Istio images.
  # Should track latest released version in the branch.
  tag: 0.8.0
  proxy:
    image: proxyv2
    resources:
      requests:
        cpu: 100m
        memory: 128Mi

    # istio-sidecar-injector configmap stores configuration for sidecar injection.
    # This config map is used by istioctl kube-inject and the injector webhook.
    enableCoreDump: false
    serviceAccountName: default # used only if RBAC is not enabled
    replicaCount: 1
    resources:
      requests:
        cpu: 100m
        memory: 128Mi
    # limits:
    #  cpu: 100m
    #  memory: 128Mi

    # istio egress capture whitelist
    # https://istio.io/docs/tasks/traffic-management/egress.html#calling-external-services-directly
    # example: includeIPRanges: "172.30.0.0/16,172.20.0.0/16"
    # would only capture egress traffic on those two IP Ranges, all other outbound traffic would
    # be allowed by the sidecar
    includeIPRanges: "*"
    excludeIPRanges: ""

    # istio ingress capture whitelist
    # examples:
    #     Redirect no inbound traffic to Envoy:    --includeInboundPorts=""
    #     Redirect all inbound traffic to Envoy:   --includeInboundPorts="*"
    #     Redirect only selected ports:            --includeInboundPorts="80,8080"
    includeInboundPorts: "*"
    excludeInboundPorts: ""
    policy: enabled

  proxy_init:
    image: proxy_init

  # imagePullPolicy is applied to istio control plane components.
  # local tests require IfNotPresent, to avoid uploading to dockerhub.
  # TODO: Switch to Always as default, and override in the local tests.
  imagePullPolicy: IfNotPresent

  # Not recommended for user to configure this. Hyperkube image to use when creating custom resources
  hyperkube:
    repository: 192.168.30.100:8889/coreos/hyperkube
    tag: v1.7.6_coreos.0

  # controlPlaneMtls enabled. Will result in delays starting the pods while secrets are
  # propagated, not recommended for tests.
  controlPlaneSecurityEnabled: false

  # Default mtls policy. If true, mtls between services will be enabled by default.
  mtls:
    # Default setting for service-to-service mtls. Can be set explicitly using
    # destination rules or service annotations.
    enabled: false
    # List of fully qualified services to exclude from mtls
    # TODO: add the templating.
    mtlsExcludedServices:
    - "kubernetes.default.svc.cluster.local"

  # create RBAC resources. Must be set for any cluster configured with rbac.
  rbacEnabled: true

  ## imagePullSecrets for all ServiceAccount. Must be set for any clustser configured with privte docker registry.
  # imagePullSecrets:
  #   - name: "private-registry-key"

  # Default is 1 second
  refreshInterval: 10s

  # Enable multicluster operation.  Must be set to true if multicluster operation
  # is desired.
  multicluster:
    enabled: false

  # Specify pod scheduling arch(amd64, ppc64le, s390x) and weight as follows:
  #   0 - Never scheduled
  #   1 - Least preferred
  #   2 - No preference
  #   3 - Most preferred
  arch:
    amd64: 2
    s390x: 2
    ppc64le: 2

# Any customization for istio testing should be here
istiotesting:
  oneNameSpace: false

#
# ingress configuration
#
ingress:
  enabled: true
  serviceAccountName: default
  autoscaleMin: 1
  autoscaleMax: 1
  resources: {}
# limits:
#  cpu: 100m
#  memory: 128Mi
# requests:
#  cpu: 100m
#  memory: 128Mi
  service:
    loadBalancerIP: "10.100.100.20"
    type: LoadBalancer #change to NodePort, ClusterIP or LoadBalancer if need be
    ports:
    - port: 80
      name: http
      nodePort: 32000
    - port: 443
      name: https
    selector:
      istio: ingress
#
# ingressgateway configuration
#
ingressgateway:
  enabled: true
  serviceAccountName: istio-ingressgateway-service-account
  autoscaleMin: 1
  autoscaleMax: 1
  resources: {}
# limits:
#  cpu: 100m
#  memory: 128Mi
# requests:
#  cpu: 100m
#  memory: 128Mi
  service:
    name: istio-ingressgateway #DNS addressible
    labels:
      istio: ingressgateway
    #namespace: istio-system
    loadBalancerIP: "10.100.100.129"
    type: LoadBalancer #change to NodePort, ClusterIP or LoadBalancer if need be
    ports:
      ## You can add custom gateway ports
    - port: 80
      name: http
      nodePort: 31380
    - port: 443
      name: https
      nodePort: 31390
    - port: 31400
      name: tcp
      nodePort: 31400
  deployment:
    labels:
      istio: ingressgateway #will be added to pods and service
    ports:
    - containerPort: 80
    - containerPort: 443
    - containerPort: 31400
    secretVolumes:
    - name: ingressgateway-certs
      secretName: istio-ingressgateway-certs
      mountPath: /etc/istio/ingressgateway-certs

#
# egressgateway configuration
#
egressgateway:
  enabled: true
  serviceAccountName: istio-egressgateway-service-account
  autoscaleMin: 1
  autoscaleMax: 1
  resources: {}
# limits:
#  cpu: 100m
#  memory: 128Mi
# requests:
#  cpu: 100m
#  memory: 128Mi
  service:
    name: istio-egressgateway #DNS addressible
    labels:
      istio: egressgateway
    #namespace: istio-system
    type: ClusterIP #change to NodePort or LoadBalancer if need be
    ports:
      ## You can add custom gateway ports
    - port: 80
      name: http
    - port: 443
      name: https
  deployment:
    labels:
      istio: egressgateway #will be added to pods and service
    ports:
    - containerPort: 80
    - containerPort: 443
  # secretVolumes: TODO
  # - name: someName
  #   mountPath: somePath
  #   secretName: someName

#
# sidecar-injector webhook configuration
#
sidecarInjectorWebhook:
  enabled: true
  image: sidecar_injector


#
# galley configuration
#
galley:
  enabled: false
  serviceAccountName: default
  replicaCount: 1
  image: galley
  resources: {}
  # limits:
  #  cpu: 100m
  #  memory: 128Mi
  # requests:
  #  cpu: 100m
  #  memory: 128Mi

#
# mixer configuration
#
mixer:
  enabled: true
  serviceAccountName: default # used only if RBAC is not enabled
  replicaCount: 1
  image: mixer
  resources: {}
  # limits:
  #  cpu: 100m
  #  memory: 128Mi
  # requests:
  #  cpu: 100m
  #  memory: 128Mi

  prometheusStatsdExporter:
    repository: 192.168.30.100:8889/prom/statsd-exporter
    tag: latest
    resources: {}

#
# pilot configuration
#
pilot:
  enabled: true
  serviceAccountName: default # used only if RBAC is not enabled
  replicaCount: 1
  image: pilot
  resources: {}
  # limits:
  #  cpu: 100m
  #  memory: 128Mi
  # requests:
  #  cpu: 100m
  #  memory: 128Mi

#
# security configuration
#
security:
  enabled: true
  serviceAccountName: default # used only if RBAC is not enabled
  replicaCount: 1
  image: citadel
  resources: {}
  # limits:
  #  cpu: 100m
  #  memory: 128Mi
  # requests:
  #  cpu: 100m
  #  memory: 128Mi
  cleanUpOldCA: true

#
# addons configuration
#
grafana:
  enabled: true
  replicaCount: 1
  image: grafana
  service:
    name: http
    type: ClusterIP
    externalPort: 3000
    internalPort: 3000
  ingress:
    enabled: false
    # Used to create an Ingress record.
    hosts:
      - grafana.local
    annotations:
      # kubernetes.io/ingress.class: nginx
      # kubernetes.io/tls-acme: "true"
    tls:
      # Secrets must be manually created in the namespace.
      # - secretName: grafana-tls
      #   hosts:
      #     - grafana.local

  resources: {}
    # limits:
    #  cpu: 100m
    #  memory: 128Mi
    # requests:
    #  cpu: 100m
    #  memory: 128Mi

prometheus:
  enabled: true
  replicaCount: 1
  image:
    repository: 192.168.30.100:8889/prom/prometheus
    tag: latest
  ingress:
    enabled: false
    # Used to create an Ingress record.
    #hosts:
    #  - prometheus.local
    annotations:
      # kubernetes.io/ingress.class: nginx
      # kubernetes.io/tls-acme: "true"
    tls:
      # Secrets must be manually created in the namespace.
      # - secretName: prometheus-tls
      #   hosts:
      #     - prometheus.local
  resources: {}
    # limits:
    #  cpu: 100m
    #  memory: 128Mi
    # requests:
    #  cpu: 100m
    #  memory: 128Mi
  service:
    nodePort:
      enabled: false
      port: 32090

servicegraph:
  enabled: true
  replicaCount: 1
  image: servicegraph
  service:
    name: http
    type: ClusterIP
    externalPort: 8088
    internalPort: 8088
  ingress:
    enabled: false
    # Used to create an Ingress record.
    hosts:
      - servicegraph.local
    annotations:
      # kubernetes.io/ingress.class: nginx
      # kubernetes.io/tls-acme: "true"
    tls:
      # Secrets must be manually created in the namespace.
      # - secretName: servicegraph-tls
      #   hosts:
      #     - servicegraph.local
  resources: {}
    # limits:
    #  cpu: 100m
    #  memory: 128Mi
    # requests:
    #  cpu: 100m
    #  memory: 128Mi
  # prometheus addres
  prometheusAddr: http://prometheus:9090

tracing:
  enabled: true
  jaeger:
    enabled: true
    memory:
      max_traces: 50000
  replicaCount: 1
  image:
    repository: 192.168.30.100:8889/jaegertracing/all-in-one
    tag: 1.5
  service:
    name: http
    type: ClusterIP
    externalPort: 9411
    internalPort: 9411
    uiPort: 16686
  ingress:
    enabled: false
    # Used to create an Ingress record.
    hosts:
      - zipkin.local
    annotations:
      # kubernetes.io/ingress.class: nginx
      # kubernetes.io/tls-acme: "true"
    tls:
      # Secrets must be manually created in the namespace.
      # - secretName: zipkin-tls
      #   hosts:
      #     - zipkin.local
  resources: {}
    # limits:
    #  cpu: 100m
    #  memory: 128Mi
    # requests:
    #  cpu: 100m
    #  memory: 128Mi

主要修改了镜像地址和将以些默认不安装的addon设置为安装(grafana,servicegraph,tracing)
安装成功之后

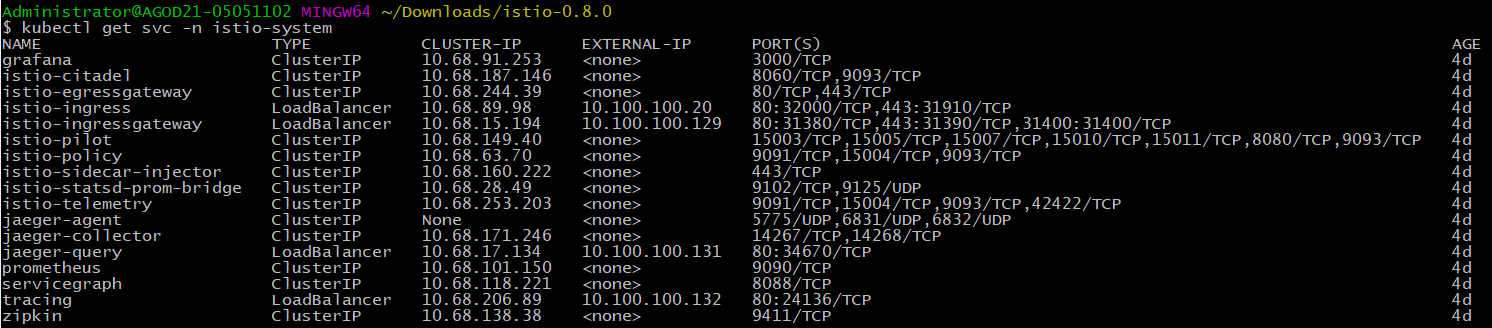

istio svc
istio svc

为了避免ingressgate-way所在的机子80端口被占用，特申请一台ingressgate-way的IP地址相同机子

在dns里添加了主机域名

Mesh Expansion

Istio 还支持管理非 Kubernetes 管理的应用。此时，需要在应用所在的 VM 或者物理中部署 Istio，具体步骤请参考 https://istio.io/docs/setup/kubernetes/mesh-expansion.html。
部署好后，就可以向 Istio 注册应用，如

# istioctl register servicename machine-ip portname:port
istioctl -n onprem register mysql 1.2.3.4 3306
istioctl -n onprem register svc1 1.2.3.4 http:7000

Prometheus、Grafana 和 Zipkin

等所有 Pod 启动后，可以通过 NodePort、负载均衡服务的外网 IP 或者 kubectl proxy 来访问这些服务或者创建一个istio的VirtualService。

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: istio-gateway
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "prom.example.com"
    - "grafana.example.com"
    - "pilot.example.com"
    - "zipkin.example.com"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: grafana
spec:
  hosts:
  - "grafana.example.com"
  gateways:
  - istio-gateway
  http:
  - route:
    - destination:
        host: grafana.istio-system.svc.cluster.local
        port:
          number: 3000
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: prom
spec:
  hosts:
  - "prom.example.com"
  gateways:
  - istio-gateway
  http:
  - route:
    - destination:
        host: prometheus.istio-system.svc.cluster.local
        port:
          number: 9090
---

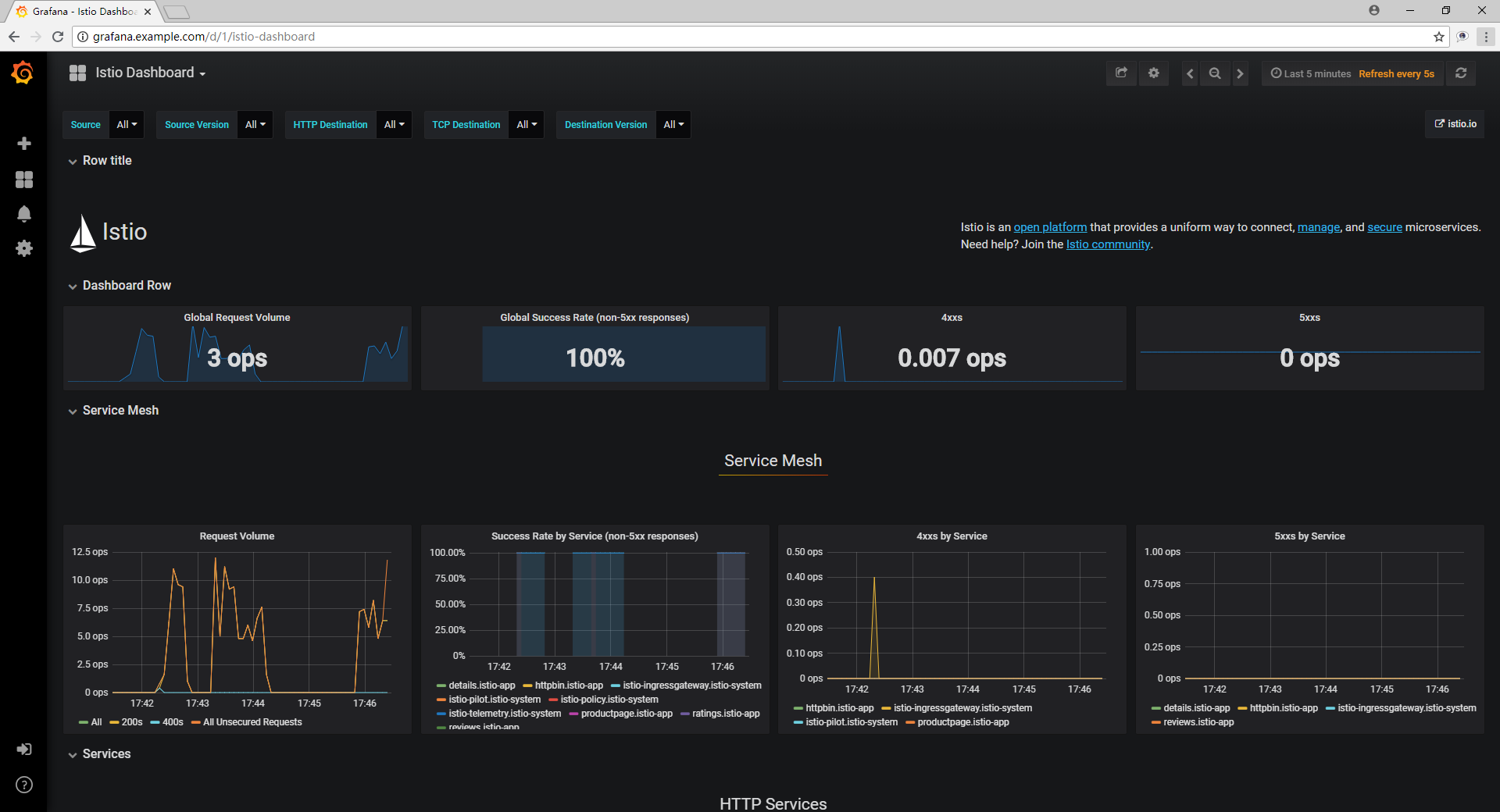

通过 http://grafana.example.com 访问 Grafana 服务

通过loabblancer访问jaeger-query,展示服务之间调用关系图

参考文档

官方istio安装
istio安装
