Istio 策略管理

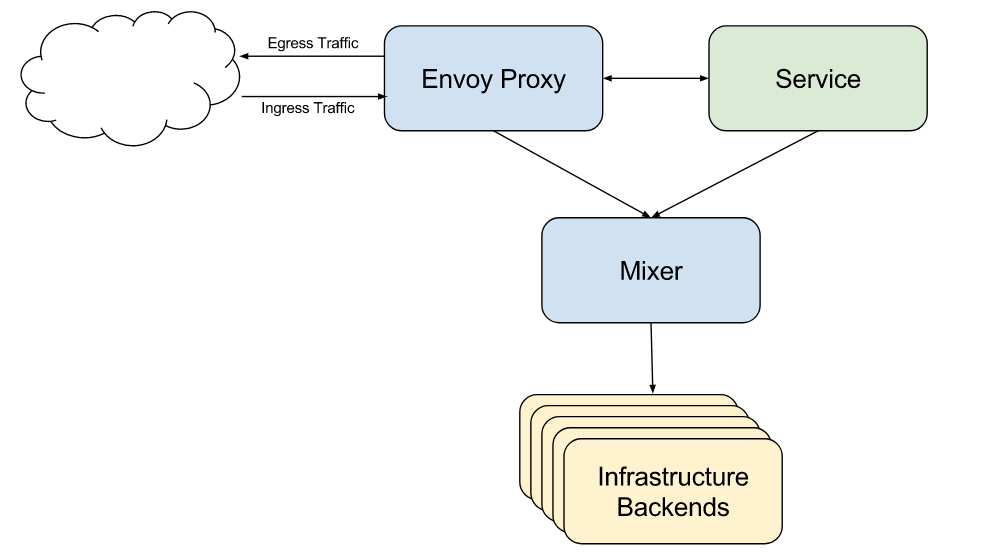

Mixer 为应用程序和基础架构后端之间提供了一个通用的策略控制层,负责先决条件检查(如认证授权)、配额管理并从 Envoy 代理中收集遥测数据等。


Mixer 支持灵活的插件模型(即 Adapters),支持 GCP、AWS、Prometheus、Heapster 等各种丰富功能的后端。

实现原理

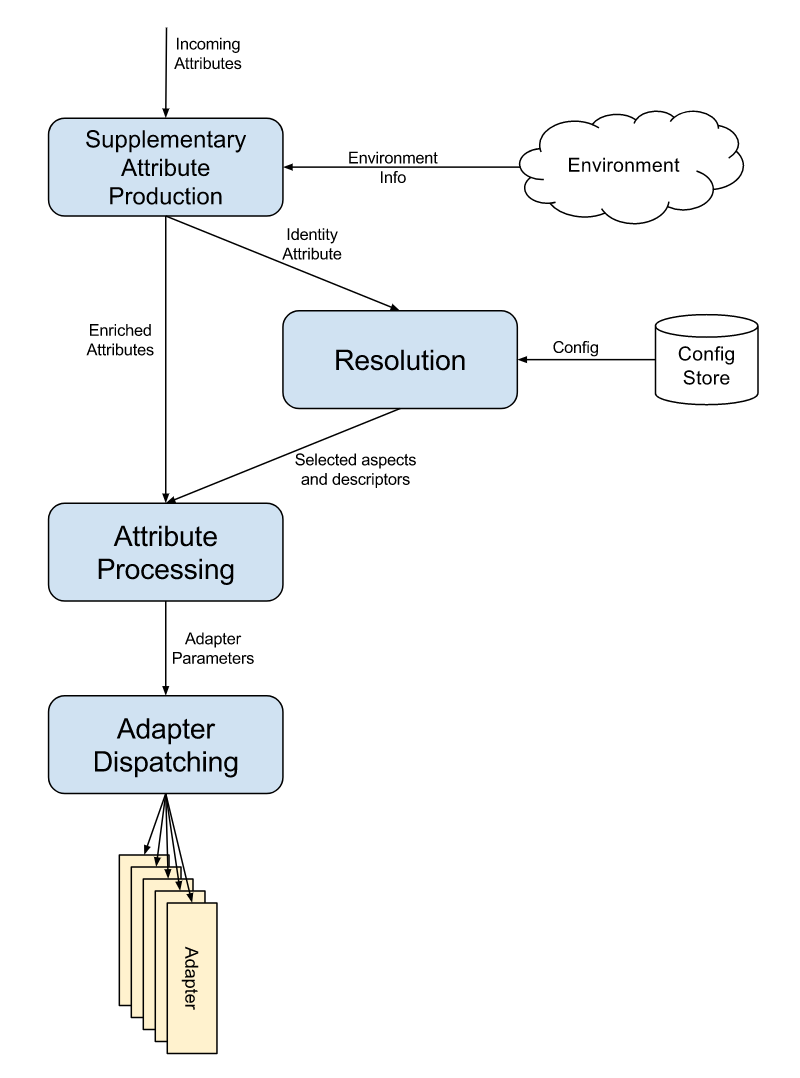

本质上,Mixer 是一个 属性 处理机,进入 Mixer 的请求带有一系列的属性,Mixer 按照不同的处理阶段处理:

  • 通过全局 Adapters 为请求引入新的属性
  • 通过解析(Resolution)识别要用于处理请求的配置资源
  • 处理属性,生成 Adapter 参数
  • 分发请求到各个 Adapters 后端处理
    Adapters 后端以 Mixer 配置 的方式注册到 Istio 中,参考这里查看示例配置

流量限制示例


apiVersion: "config.istio.io/v1alpha2"
kind: memquota
metadata:
name: handler
namespace: istio-system
spec:
quotas:
- name: requestcount.quota.istio-system
maxAmount: 5000
validDuration: 1s
# The first matching override is applied.
# A requestcount instance is checked against override dimensions.
overrides:
# The following override applies to 'ratings' when
# the source is 'reviews'.
- dimensions:
destination: ratings
source: reviews
maxAmount: 1
validDuration: 1s
# The following override applies to 'ratings' regardless
# of the source.
- dimensions:
destination: ratings
maxAmount: 100
validDuration: 1s

---
apiVersion: "config.istio.io/v1alpha2"
kind: quota
metadata:
name: requestcount
namespace: istio-system
spec:
dimensions:
source: source.labels["app"] | source.service | "unknown"
sourceVersion: source.labels["version"] | "unknown"
destination: destination.labels["app"] | destination.service | "unknown"
destinationVersion: destination.labels["version"] | "unknown"

---
apiVersion: "config.istio.io/v1alpha2"
kind: rule
metadata:
name: quota
namespace: istio-system
spec:
actions:
- handler: handler.memquota
instances:
- requestcount.quota
---
apiVersion: config.istio.io/v1alpha2
kind: QuotaSpec
metadata:
creationTimestamp: null
name: request-count
namespace: istio-system
spec:
rules:
- quotas:
- charge: 1
quota: RequestCount
---
apiVersion: config.istio.io/v1alpha2
kind: QuotaSpecBinding
metadata:
creationTimestamp: null
name: request-count
namespace: istio-system
spec:
quotaSpecs:
- name: request-count
namespace: istio-system
services:
- name: ratings
- name: reviews
- name: details
- name: productpage
