Istio 流量管理

Istio 提供了强大的流量管理功能，如智能路由、服务发现与负载均衡、故障恢复、故障注入等。


流量管理的功能由 Pilot 配合 Envoy 负责，并接管进入和离开容器的所有流量：

API 版本

Istio 0.7.X 及以前版本仅支持 config.istio.io/v1alpha2，0.8.0 将其升级为 networking.istio.io/v1alpha3，并且重命名了流量管理的几个资源对象：

  • RouteRule -> VirtualService
  • DestinationPolicy -> DestinationRule
  • EgressRule -> ExternalService
  • Ingress -> Gateway

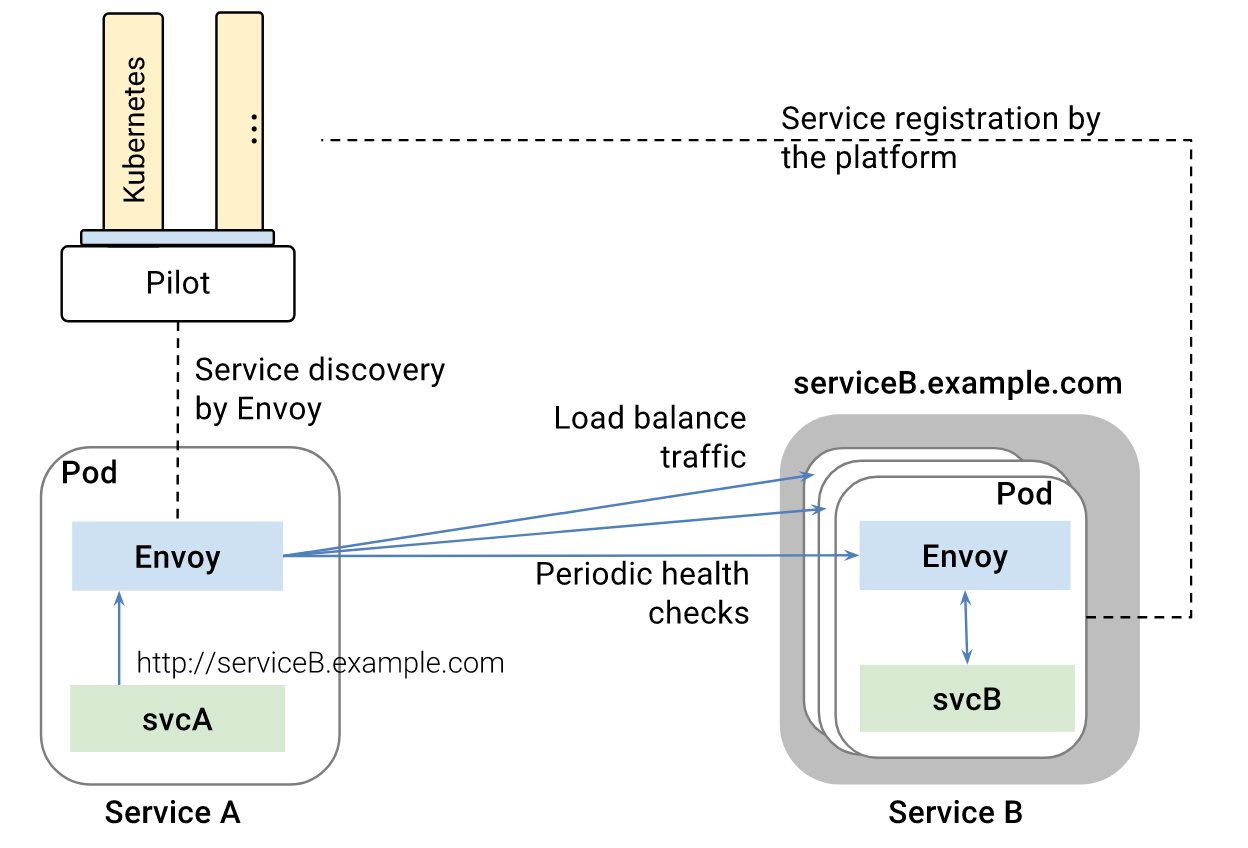

服务发现和负载均衡

为了接管流量，Istio 假设所有容器在启动时自动将自己注册到 Istio 中（通过自动或手动给 Pod 注入 Envoy sidecar 容器）。Envoy 收到外部请求后，会对请求作负载均衡，并支持轮询、随机和加权最少请求等负载均衡算法。除此之外，Envoy 还会以熔断机制定期检查服务后端容器的健康状态，自动移除不健康的容器和加回恢复正常的容器。容器内也可以返回 HTTP 503 显示将自己从负载均衡中移除。

流量接管原理

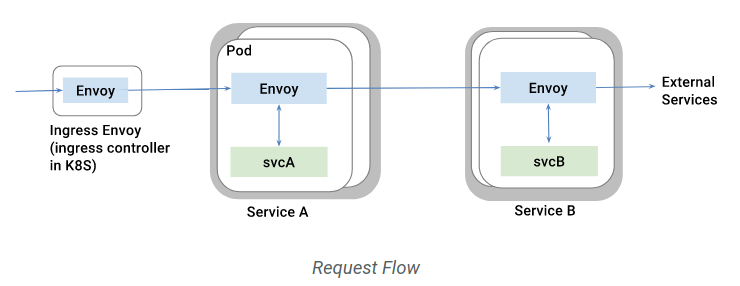

Envoy sidecar 使用 iptables 把进入 Pod 和从 Pod 发出的流量转发到 Envoy 进程监听的端口（即 15001 端口）上：

# Generated by iptables-save v1.6.0 on Fri Jun  8 07:37:33 2018
*mangle
:PREROUTING ACCEPT [2883:1129969]
:INPUT ACCEPT [2883:1129969]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [58217:6662600]
:POSTROUTING ACCEPT [58217:6662600]
COMMIT
# Completed on Fri Jun  8 07:37:33 2018
# Generated by iptables-save v1.6.0 on Fri Jun  8 07:37:33 2018
*nat
:PREROUTING ACCEPT [0:0]
:INPUT ACCEPT [0:0]
:OUTPUT ACCEPT [299:27815]
:POSTROUTING ACCEPT [299:27815]
:ISTIO_INBOUND - [0:0]
:ISTIO_OUTPUT - [0:0]
:ISTIO_REDIRECT - [0:0]
-A PREROUTING -p tcp -j ISTIO_INBOUND
-A OUTPUT -p tcp -j ISTIO_OUTPUT
-A ISTIO_INBOUND -p tcp -m tcp --dport 9080 -j ISTIO_REDIRECT
-A ISTIO_OUTPUT ! -d 127.0.0.1/32 -o lo -j ISTIO_REDIRECT
-A ISTIO_OUTPUT -m owner --uid-owner 1337 -j RETURN
-A ISTIO_OUTPUT -m owner --gid-owner 1337 -j RETURN
-A ISTIO_OUTPUT -d 127.0.0.1/32 -j RETURN
-A ISTIO_OUTPUT -j ISTIO_REDIRECT
-A ISTIO_REDIRECT -p tcp -j REDIRECT --to-ports 15001
COMMIT
# Completed on Fri Jun  8 07:37:33 2018

故障恢复

Istio 提供了一系列开箱即用的故障恢复功能，如

  • 超时处理
  • 重试处理，如限制最大重试时间以及可变重试间隔
  • 健康检查，如自动移除不健康的容器
  • 请求限制，如并发请求数和并发连接数
  • 熔断

这些功能均可以使用 VirtualService 动态配置。比如以下为用户 jason 的请求返回 500 （而其他用户均可正常访问）：

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: ratings
spec:
  hosts:
  - ratings
  http:
  - match:
    - headers:
        cookie:
          regex: "^(.*?;)?(user=jason)(;.*)?$"
    fault:
      abort:
        percent: 100
        httpStatus: 500
    route:
    - destination:
        host: ratings
        subset: v1
  - route:
    - destination:
        host: ratings
        subset: v1

熔断示例：

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: httpbin
spec:
  host: httpbin
  trafficPolicy:
    connectionPool:
      tcp:
        maxConnections: 1
      http:
        http1MaxPendingRequests: 1
        maxRequestsPerConnection: 1
    outlierDetection:
      http:
        consecutiveErrors: 1
        interval: 1s
        baseEjectionTime: 3m
        maxEjectionPercent: 100

故障注入

Istio 支持为应用注入故障，以模拟实际生产中碰到的各种问题，包括

  • 注入延迟（模拟网络延迟和服务过载）
  • 注入失败（模拟应用失效）
    这些故障均可以使用 VirtualService 动态配置。如以下配置 2 秒的延迟：
    apiVersion: networking.istio.io/v1alpha3
    kind: VirtualService
    metadata:
      name: ratings
    spec:
      hosts:
      - ratings
      http:
      - fault:
          delay:
            percent: 100
            fixedDelay: 2s
        route:
        - destination:
            host: ratings
            subset: v1

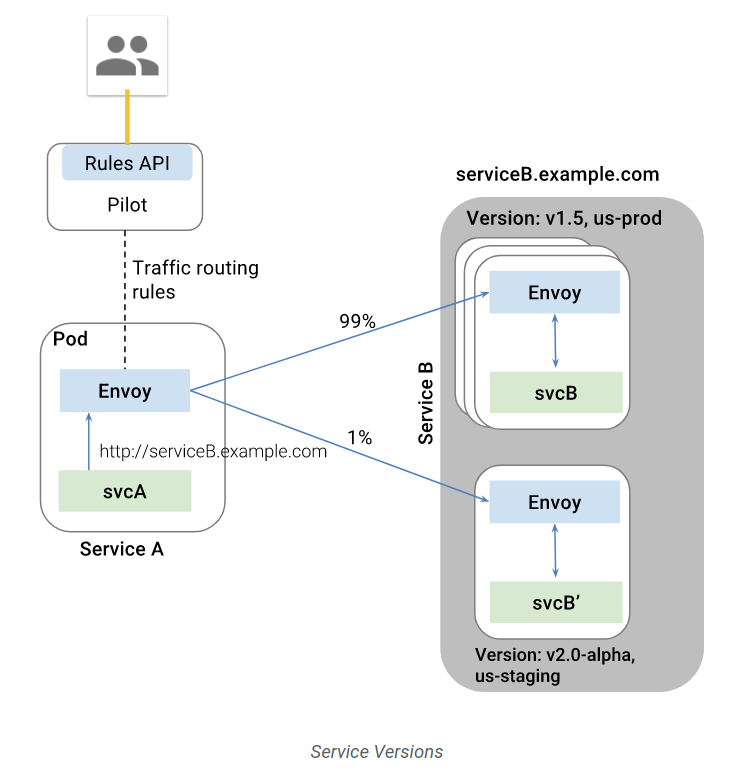

金丝雀部署

首先部署 bookinfo，并配置默认路由为 v1 版本：

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: productpage
spec:
  hosts:
  - productpage
  gateways:
  - bookinfo
  http:
  - route:
    - destination:
        host: productpage
        subset: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
  - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: ratings
spec:
  hosts:
  - ratings
  http:
  - route:
    - destination:
        host: ratings
        subset: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: details
spec:
  hosts:
  - details
  http:
  - route:
    - destination:
        host: details
        subset: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: productpage
spec:
  host: productpage
  subsets:
  - name: v1
    labels:
      version: v1
---
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
  - name: v3
    labels:
      version: v3
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: ratings
spec:
  host: ratings
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
  - name: v2-mysql
    labels:
      version: v2-mysql
  - name: v2-mysql-vm
    labels:
      version: v2-mysql-vm
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: details
spec:
  host: details
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
---

示例一：将 10% 请求发送到 v2 版本而其余 90% 发送到 v1 版本

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
    - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v1
      weight: 90
    - destination:
        host: reviews
        subset: v2
      weight: 10

示例二：将 jason 用户的请求全部发到 v2 版本

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
    - reviews
  http:
  - match:
    - headers:
        cookie:
          regex: "^(.*?;)?(user=jason)(;.*)?$"
    route:
    - destination:
        host: reviews
        subset: v2
  - route:
    - destination:
        host: reviews
        subset: v1

示例三：全部切换到 v2 版本

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews
spec:
  hosts:
  - reviews
  http:
  - route:
    - destination:
        host: reviews
        subset: v2

示例四：限制并发访问

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
    trafficPolicy:
      connectionPool:
        tcp:
          maxConnections: 100

Istio Ingress

Istio 在部署时会自动创建一个 Istio Gateway，用来控制 Ingress 访问。

# prepare自动注入
kubectl apply -f samples/httpbin/httpbin.yaml

# get ingress external IP (suppose load balancer service)
kubectl get svc istio-ingressgateway -n istio-system
export INGRESS_HOST=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
export INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="http")].port}')
export SECURE_INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="https")].port}')


# create gateway
cat <<EOF | istioctl create -f -
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: httpbin-gateway
spec:
  selector:
    istio: ingressgateway # use Istio default gateway implementation
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "httpbin.example.com"
EOF

# configure routes for the gateway
cat <<EOF | istioctl create -f -
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: httpbin
spec:
  hosts:
  - "httpbin.example.com"
  gateways:
  - httpbin-gateway
  http:
  - match:
    - uri:
        prefix: /status
    - uri:
        prefix: /delay
    route:
    - destination:
        port:
          number: 8000
        host: httpbin
EOF


# validate 200
curl --resolve httpbin.example.com:$INGRESS_PORT:$INGRESS_HOST -HHost:httpbin.example.com -I http://httpbin.example.com:$INGRESS_PORT/status/200

# invalidate 404
curl --resolve httpbin.example.com:$INGRESS_PORT:$INGRESS_HOST -HHost:httpbin.example.com -I http://httpbin.example.com:$INGRESS_PORT/headers

使用 TLS：

# 生成证书
git clone https://github.com/nicholasjackson/mtls-go-example

cd mtls-go-example

#该命令将产生四个目录：1_root，2_intermediate，3_application和4_client与你将使用客户端和服务器证书。
generate.sh bookinfo.example.com <password>

# istio-ingressgateway-certs必须在istio-system命名空间中
kubectl create -n istio-system secret tls istio-ingressgateway-certs --key 3_application/private/httpbin.example.com.key.pem --cert 3_application/certs/httpbin.example.com.cert.pem

cat <<EOF | istioctl replace -f -
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: httpbin-gateway
spec:
  selector:
    istio: ingressgateway # use istio default ingress gateway
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "httpbin.example.com"
  - port:
      number: 443
      name: https
      protocol: HTTPS
    tls:
      mode: SIMPLE
      serverCertificate: /etc/istio/ingressgateway-certs/tls.crt
      privateKey: /etc/istio/ingressgateway-certs/tls.key
    hosts:
    - "httpbin.example.com"
EOF

# validate 200
curl --resolve httpbin.example.com:$SECURE_INGRESS_PORT:$INGRESS_HOST -HHost:httpbin.example.com -I -k https://httpbin.example.com:$SECURE_INGRESS_PORT/status/200

Egress 流量

默认情况下，Istio 接管了容器的内外网流量，从容器内部无法访问 Kubernetes 集群外的服务。可以通过 ServiceEntry 为需要的容器开放 Egress 访问，如

$ cat <<EOF | istioctl create -f -
apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
  name: httpbin-ext
spec:
  hosts:
  - httpbin.org
  ports:
  - number: 80
    name: http
    protocol: HTTP
EOF

$ cat <<EOF | istioctl create -f -
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: httpbin-ext
spec:
  hosts:
    - httpbin.org
  http:
  - timeout: 3s
    route:
      - destination:
          host: httpbin.org
        weight: 100
EOF

需要注意的是 ServiceEntry 仅支持 HTTP、TCP 和 HTTPS，对于其他协议需要通过 –includeIPRanges 的方式设置 IP 地址范围，如

helm template @install/kubernetes/helm/istio@ --name istio --namespace istio-system --set global.proxy.includeIPRanges="10.0.0.1/24" -x @templates/sidecar-injector-configmap.yaml@ | kubectl apply -f -

流量镜像

cat <<EOF | istioctl replace -f -
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: httpbin
spec:
  hosts:
    - httpbin
  http:
  - route:
    - destination:
        host: httpbin
        subset: v1
      weight: 100
    mirror:
      host: httpbin
      subset: v2
EOF
